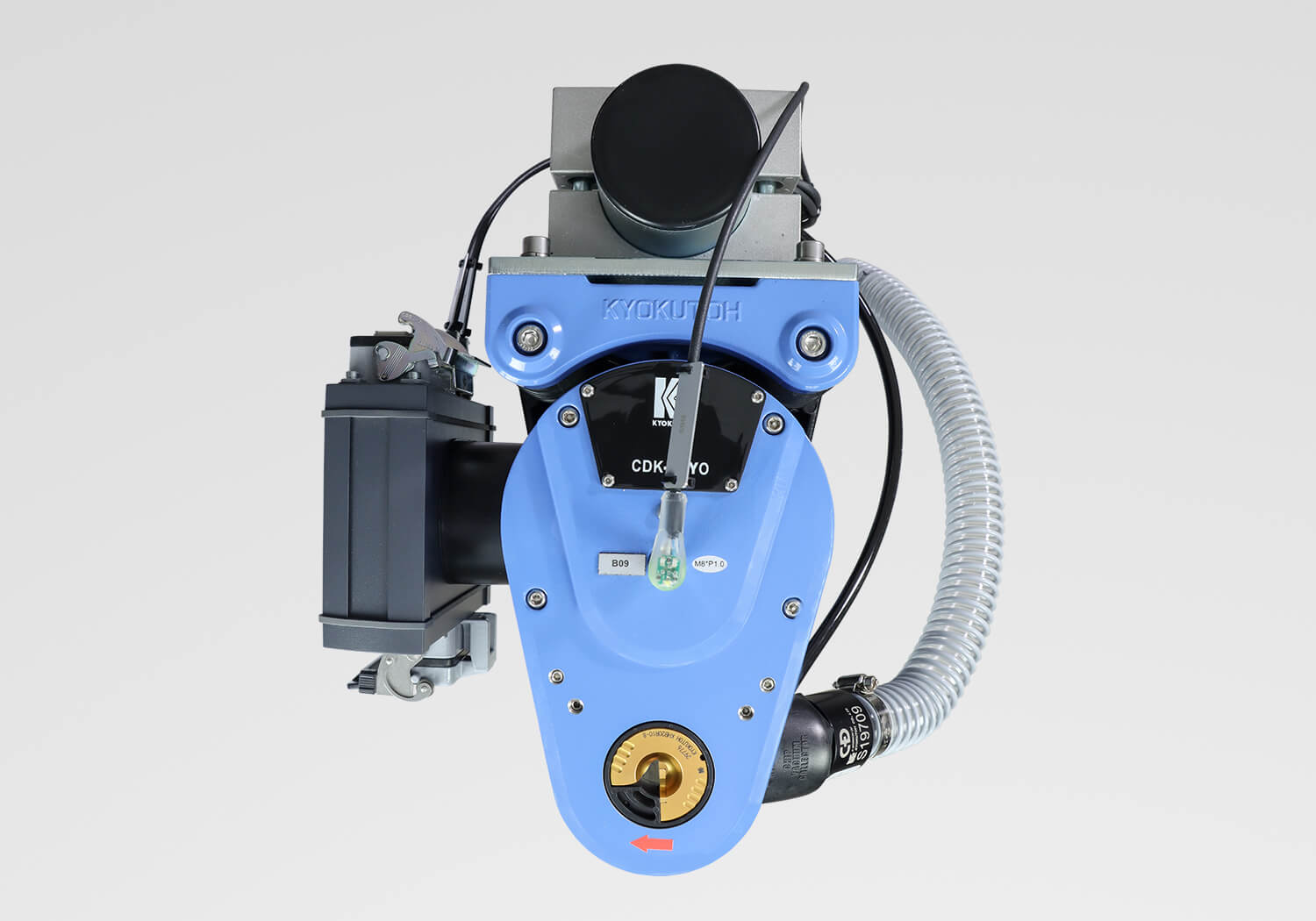

KE CDK-BAYO SET Tip Dressing in perfection

High availability for versatile use

The CDK-BAYO is a powerful and reliable tip dresser and a warrantor for highest dressing quality. The high runner from the KYOKUTOH family!

With its market-wide unique and robust machine construction and the powerful 1 KW motor, it is convincing not only by design, but above all by above-average dressing results and longevity. Due to the materials used, the tip dresser has a very long service life and is ideally suited for use in any production environment.

The CDK-BAYO can be used in any working position. It does not matter whether it is horizontal, vertical or even upright. The integrated spring assembly ensures simultaneous removal during electrode dressing. To make changing the tools as simple and quick as possible, the tool holder is equipped with a bayonet lock. Thus, even when replacing existing tools, there is only a short period of time during which personnel have to be in the cell. With the control box already integrated originally, the system is simple and PLUG&PLAY ready. The powerful extraction unit ensures that the chips are safely removed. An integrated motor protection switch is provided for the prescribed safety.


Advantages

  • PLUG&PLAY system for simple and fast installation
  • Bayonet cutter holders
  • Chip Vacuum System CVC5
  • Integrated control box
  • Robust design
  • Low-vibration and stable stand

Specifications

Voltage

400 V

Frequency

50/60 Hz

Current

2.3/2.2 A

Speed

234/280 rpm

Weight

14.5 kg

Accessories

Removal tool

Special Solutions

Compensation Extension

Connection type

PLUG & PLAY

Tool holder

Bayonet

Gun compensation

Mechanical
